STEP 02 | mounting filter casing assambly



The filter casing assembly comes apart into two sections.
To take them apart, rotate the top and bottom sections
in a counterclockwise direction.

Please screw filter housing together only by hand.

Insert the tip end of the fiber filter cartridge into the center
of the filter case (top).

Then, firmly tighten the filter case (top)
and filter case (bottom) together.





Colormetry CMU 324 Filter



At the tip end of the upper case, a black rubber gate is used as constant flow valve.
A new constant flow valve is included in the delivery of the fine filter cartridge.

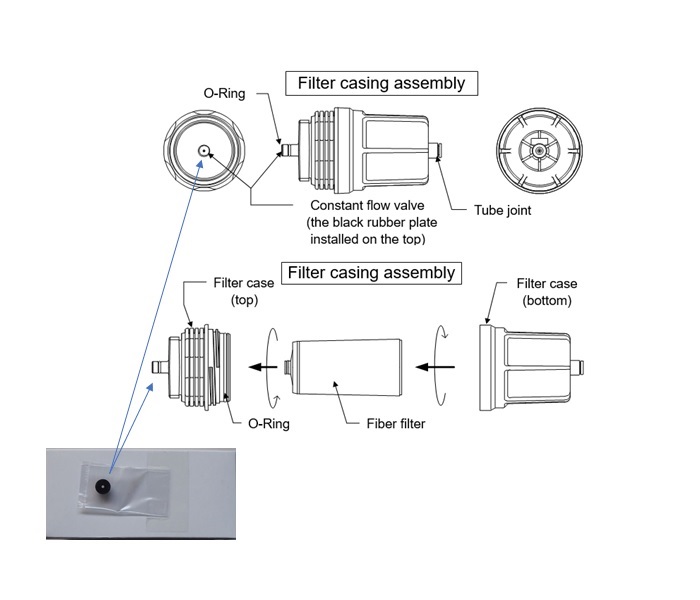

Colormetry CMU 324 filter casing assembly 2
